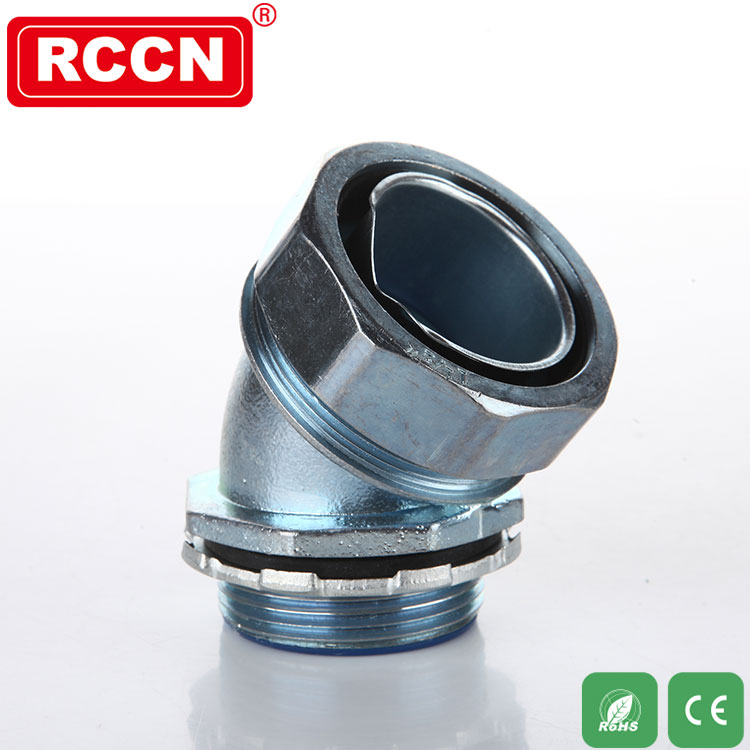

RCCN Conduit Fittings NBN

Conduit Fittings

Konu: G / PF, Metrik, PG
Malzeme: A.C.F çinko metalden yapılır.
NBR.D demir sacdan imal edilmiştir.
Sertifikalar: CE RoHS
Renk: Arjantin (gümüş)
Sınıfı korumak: IP6
Kısa süre içinde T.:-40° C ila 100 ° C, 120 ° C arasında çalıştırın.
Özellikler: Birleştirmeden sonra ürünler ve kutu arasında 1.90 °, kalınlık
çinko kaplı metal eklendi
2. özel iplik üretilebilir

Conduit Fittings NBN

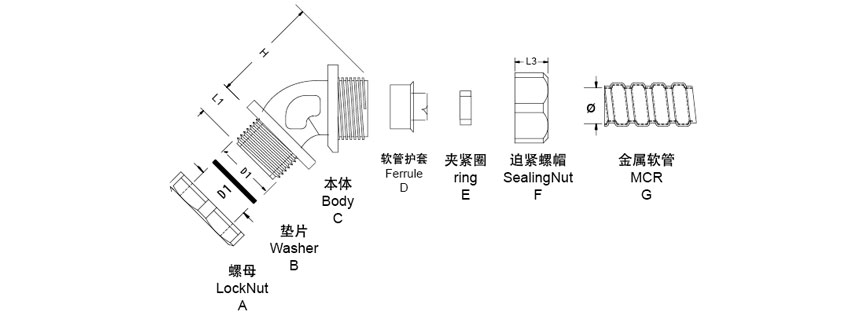

Item No.	Thread	suitable RCCN metal flexible conduit MCR			Thread O.D. D1	Thread Length L1	Joint Length L2+L3	Packing pcs
Item No.	Thread	Corresponding item no	Metric ø	British	Thread O.D. D1	Thread Length L1	Joint Length L2+L3	Packing pcs
NBN-G
NBN-04G	G3/8"	MCR-04	13	3/8"	16.5	8	50	30
NBN-05G	G1/2"	MCR-05	16	1/2"	21.3	11	54	30
NBN-06G	G3/4"	MCR-06	20	3/4"	26.6	14	60	30
NBN-08G	G1"	MCR-08	25	1"	33.4	15	70	20
NBN-10G	G1 1/4"	MCR-10	32	1 1/4"	42.1	15	90	20
NBN-12G	G1 1/2"	MCR-12	38	1 1/2"	47.8	16	100	20
NBN-16G	G2"	MCR-16	51	2"	59.6	18	120	10
NBN-20G	G2 1/2"	MCR-20	64	2 1/2"	75.1	22	160	10
NBN-24G	G3"	MCR-24	80	3"	87.8	22	190	5
NBN-32G	G4"	MCR-32	100	4"	113	24	220	5
NBN-M
NBN-04M	M16*1.5	MCR-04	13	3/8"	16	8	50	30
NBN-05M	M20*1.5	MCR-05	16	1/2"	20	11	54	30
NBN-06M	M25*1.5	MCR-06	20	3/4"	25	14	60	30
NBN-08M	M32*1.5	MCR-08	25	1"	32	15	70	20
NBN-10M	M40*1.5	MCR-10	32	1 1/4"	40	15	90	20
NBN-12M	M50*1.5	MCR-12	38	1 1/2"	50	16	100	20
NBN-16M	M63*1.5	MCR-16	51	2"	63	18	120	10
NBN-PG
NBN-04P	PG11	MCR-04	13	3/8"	18.6	8	50	30
NBN-05P	PG13.5	MCR-05	16	1/2"	20.4	11	54	30
NBN-06P	PG21	MCR-06	20	3/4"	28.3	14	60	30
NBN-08P	PG29	MCR-08	25	1"	37.0	15	70	20
NBN-10P	PG29	MCR-10	32	1 1/4"	37.0	15	90	20
NBN-12P	PG36	MCR-12	38	1 1/2"	47.0	16	100	20
NBN-16P	PG48	MCR-16	51	2"	59.3	18	120	10
